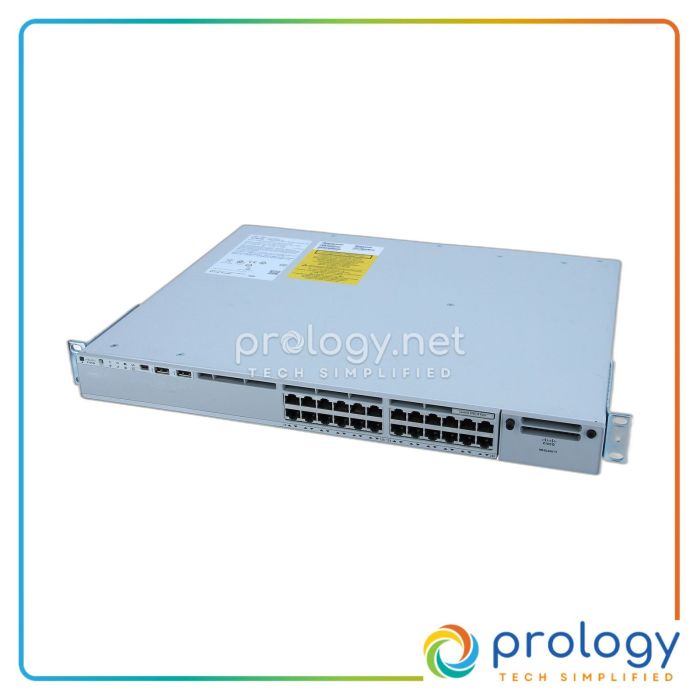

Cisco Catalyst 9200 24-Port PoE+ Network Essentials Switch – New | C9200-24P-E
In Stock — Ready to Ship
1 units available
SKU
C9200-24P-E-NEW
MPN
C9200-24P-E
$3,204
The Cisco C9200-24P-E is a new enterprise-grade switch ideal for mid-sized businesses. It features 24 PoE+ ports, 128 Gbps switching capacity, and 190.4 Mpps forwarding rate.
In Stock — Ready To Ship
General
- Device Type: Switch - 24 ports - L3 - smart - stackable
- Enclosure Type: Rack-mountable
Ports & PoE
- Ports: 24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W
- PoE Budget: 370W (default), 740W (maximum)
Performance & Capacity
- Switching Capacity: 128 Gbps
- Forwarding Rate: 190.4 Mpps
- Stacking Bandwidth: Up to 160 Gbps
Memory
- RAM: 4 GB
- Flash Memory: 4 GB
Layer & Routing
- Routing Protocols: OSPF, RIP-1, RIP-2, VRRP, PIM-SSM, policy-based routing (PBR), RIPng
Stacking
- StackWise Technology: Yes
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery US
Dispatch in 1–2 Business Days
Cisco · Catalyst 9200 Series
C9200-24P-E 24-Port PoE+ Switch New
High-performance switch for efficient networking.
Overview
The Cisco C9200-24P-E is a robust enterprise-grade switch designed to enhance networking capabilities in mid-sized businesses. It leverages Cisco's advanced ASIC technology for optimized performance and supports both Layer 2 and Layer 3 switching. This switch is ideal for environments requiring reliable connectivity and power over Ethernet capabilities.
Key Features
- 24 PoE+ Ports: Supports Power over Ethernet for powering devices directly from the switch.
- 128 Gbps Switching Capacity: Ensures high-speed data transfer across the network.
- 190.4 Mpps Forwarding Rate: Facilitates efficient packet forwarding for optimal performance.
- StackWise Technology: Allows for simplified management and up to 160 Gbps stacking bandwidth.
- Advanced Security Features: Includes AES-256 MACsec encryption for enhanced data protection.
- Dynamic Routing: Supports OSPF, RIP-1, RIP-2, and policy-based routing for flexible network design.
- Environmental Resilience: Operates in temperatures from -5°C to 45°C with a humidity range of 5-90%.
- Modular Uplinks: Supports 4 x 10G SFP+ or 4 x 1G SFP uplinks for connectivity expansion.
Specifications
| General | |
|---|---|
| Device Type | Switch - 24 ports - L3 - smart - stackable |
| Enclosure Type | Rack-mountable |
| Ports & PoE | |
| Ports | 24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W |
| PoE Budget | 370W (default), 740W (maximum) |
| Performance & Capacity | |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 190.4 Mpps |
| Stacking Bandwidth | Up to 160 Gbps |
| Memory | |
| RAM | 4 GB |
| Flash Memory | 4 GB |
| Layer & Routing | |
| Routing Protocols | OSPF, RIP-1, RIP-2, VRRP, PIM-SSM, policy-based routing (PBR), RIPng |
| Stacking | |
| StackWise Technology | Yes |
| Interfaces & Connectivity | |
| Uplink Ports | 4 x 10G SFP+ or 4 x 1G SFP |
| Power | |
| Power Supply | Internal power supply - hot-plug |
| Physical | |
| Width | 1.7 in (4.45 cm) |
| Depth | 17.5 in (44.5 cm) |
| Height | 1.73 in (4.4 cm) |
| Weight | 12.1 lbs (5.5 kg) |
| Environmental | |
| Operating Temperature | -5°C to 45°C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Compliance | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Cisco Catalyst 9200 24-Port PoE+ Network Essentials Switch – New | C9200-24P-E.
The maximum PoE budget for the C9200-24P-E is 740W with an additional power supply.
Yes, it supports StackWise technology with up to 160 Gbps stacking bandwidth.
The switch supports OSPF, RIP-1, RIP-2, VRRP, PIM-SSM, policy-based routing, and RIPng.
The forwarding rate is 190.4 Mpps.
The dimensions are 1.7 in (W) x 17.5 in (D) x 1.73 in (H).
It can support up to 32,000 MAC addresses.
