What is the maximum number of units that can be stacked?

The Cisco Catalyst 9300X supports a maximum of 8 units in a stack.

What is the PoE budget for this switch?

The PoE budget for the Cisco Catalyst 9300X is 1690 W.

What types of routing protocols does this switch support?

It supports various routing protocols including OSPF, BGP, and EIGRP.

Can I manage the switch remotely?

Yes, the switch can be managed via NETCONF, RESTCONF, and CLI.

What is the switching capacity of the Cisco Catalyst 9300X?

The switching capacity is 2000 Gbps, with a stacking capacity of 3000 Gbps.

Is the switch rack-mountable?

Yes, the Cisco Catalyst 9300X is designed to be rack-mountable.

NEW

Skip to the end of the images gallery

Skip to the beginning of the images gallery

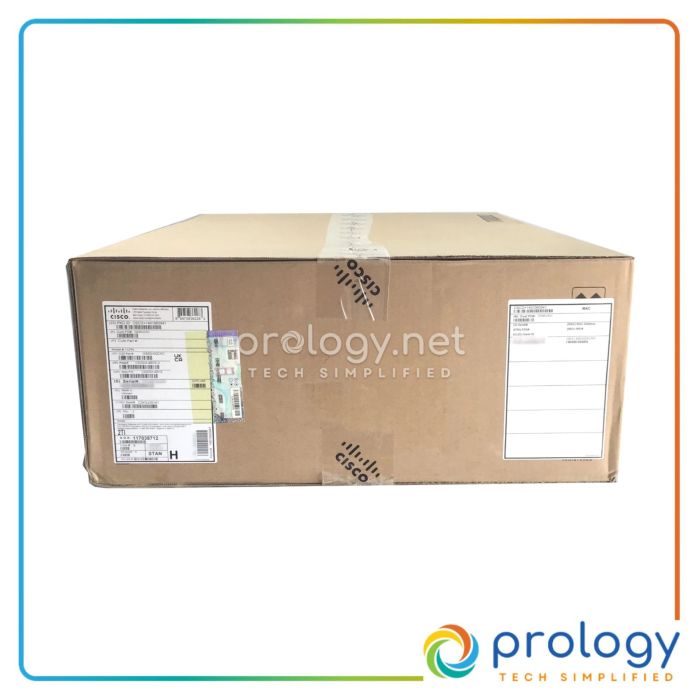

Cisco Catalyst 9300X 48-Port mGig UPoE+ Network Advantage Switch – New | C9300X-48HX-A

Name: Cisco Catalyst 9300X 48-Port mGig UPoE+ Network Advantage Switch – New | C9300X-48HX-A
Brand: Cisco
SKU: C9300X-48HX-A
Price: 7960 USD
Availability: InStock
Rating: 4.2 (5 reviews)

In Stock

1 units available

SKU

C9300X-48HX-A-NEW

MPN

C9300X-48HX-A

Be the first to review this product

$7,960

The Cisco Catalyst 9300X is a new managed switch ideal for enterprise deployments. It features 48 mGig ports, 1690 W PoE budget, and 2000 Gbps switching capacity.

In Stock

Device Type Switch - 48 ports - L3 - managed - stackable

Enclosure Type Rack-mountable

Ports 48 x 100/1000/2.5G/5G/10GBase-T (UPOE+)

PoE Budget 1690 W

Switching Capacity 2000 Gbps

Switching Capacity with Stacking 3000 Gbps

Request a quote or add to cart — pricing available on enquiry for refurbished stock.

For international customers, please contact us for personalised support and assistance.

Request Quote / Enquire

180-Days Warranty

Secure Checkout

Free Delivery US

Dispatch in 1–2 Business Days

Add to Wish List Add to Compare

Description

Cisco · Catalyst 9300 Series

C9300X-48HX-A 48-Port mGig UPoE+ Switch New

Optimized for high-density environments and future-ready.

Overview

The Cisco Catalyst 9300X is a leading stackable enterprise switch designed for security, IoT, mobility, and cloud applications. Built on an x86 CPU architecture, it supports advanced features and high-density connectivity, making it suitable for modern hybrid work environments.

Key Features

High-Density Ports: 48 mGig ports with UPOE+ support.
Switching Capacity: 2000 Gbps with stacking capability of 3000 Gbps.
Power Budget: 1690 W PoE budget for powering devices.
Advanced Routing Protocols: Supports OSPF, BGP, and more.
Robust Security: Features MACsec support and AES encryption.
Flexible Management: Managed via NETCONF, RESTCONF, and CLI.
Stacking Capability: Up to 8 units in a stack.
Environmentally Friendly: Compliant with various environmental standards.

Specifications

General
Device Type	Switch - 48 ports - L3 - managed - stackable
Enclosure Type	Rack-mountable
Ports & PoE
Ports	48 x 100/1000/2.5G/5G/10GBase-T (UPOE+)
PoE Budget	1690 W
Performance & Capacity
Switching Capacity	2000 Gbps
Switching Capacity with Stacking	3000 Gbps
Forwarding Rate	1488 Mpps
Forwarding Rate with Stacking	2232 Mpps
IPv4 Routing Table Entries	39000
Multicast Routes	8000
QoS Scale Entries	4000
ACL Scale Entries	8000
IPv6 Routing Table Entries	19500
Packet Buffer Size	16 MB
VLAN IDs	4094
Memory
RAM	16 GB
Flash Memory	16 GB
Layer & Routing
Routing Protocols	MSTP, BGP, static IP routing, RIP-1, RIP-2, RIPng, OSPF, EIGRP, BGP-4, IS-ISv4, OSPFv3, BGP for IPv6, PIM-SM, PIM-SSM, MPLS
Stacking
Max Units in a Stack	8
Interfaces & Connectivity
Expansion Slots	1 (total) / 1 (free)
Power
Power Supply	Internal power supply - hot-plug
Power Redundancy	Optional
Voltage Required	AC 115-240 V (50 - 60 Hz)
Physical
Width	17.5 in
Depth	22 in
Height	1.7 in
Weight	14.59 lbs
Environmental
Min Operating Temperature	23 °F
Max Operating Temperature	113 °F
Humidity Range Operating	5 - 90% (non-condensing)
Compliance
Compliant Standards	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1, FCC CFR47 Part 15
