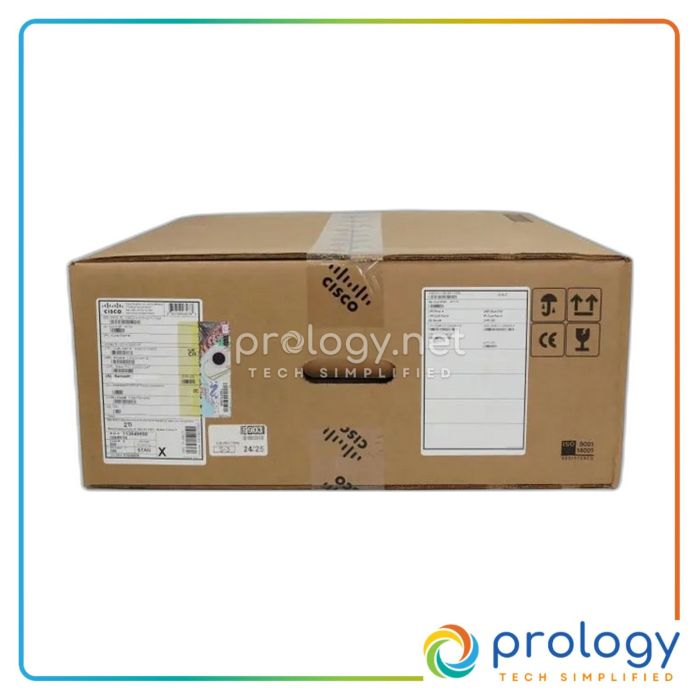

Cisco Catalyst 9300 48-Port mGig UPoE+ Network Essentials Switch – New | C9300X-48HX-E
In Stock — Ready to Ship
1 units available
SKU
C9300X-48HX-E-NEW
MPN
C9300X-48HX-E
$8,860
The Cisco Catalyst 9300 48-port switch is new and ideal for enterprises. It features 48 mGig ports, 2000 Gbps switching capacity, and a 1690 W PoE budget.
In Stock — Ready To Ship
General
- Device Type: Switch - 48 ports - L3 - managed - stackable
- Enclosure Type: Rack-mountable
Ports & PoE
- Ports: 48 x 100/1000/2.5G/5G/10GBase-T (UPOE+)
- Power Over Ethernet (PoE): UPoE+ (90 W per port)
- PoE Budget: 1690 W
Performance & Capacity
- Switching Capacity: 2000 Gbps
- Switching Capacity with Stacking: 3000 Gbps
- Forwarding Rate: 1488 Mpps
- Forwarding Rate with Stacking: 2232 Mpps
- MAC Address Table Size: 32000 entries
- IPv4 Routing Table Entries: 39000
- VLAN IDs: 4094
Memory
- Flash Memory: 16 GB
- RAM: 16 GB
Layer & Routing
- Routing Protocols: MSTP, static IP routing, RIP-1, RIP-2, RIPng, PIM-SM, PIM-SSM, GRE, policy-based routing (PBR), STP, VRRP, LISP
Stacking
- Max Units in a Stack: 8
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery US
Dispatch in 1–2 Business Days
Cisco · Catalyst 9300 Series
C9300X-48HX-E 48-Port mGig UPoE+ Switch New
Optimized for secure, high-performance networking.
Overview
The Cisco Catalyst 9300 Series switches represent the leading stackable enterprise switching platform designed for security, IoT, mobility, and cloud applications. Built with an x86 CPU architecture and enhanced memory, these switches are prepared for future demands, including high-density Wi-Fi 6 and 802.11ac Wave2. They serve as the foundational building block for Software-Defined Access (SD-Access), enabling advanced network scalability and management.
Key Features
- High Port Density: 48 x 100/1000/2.5G/5G/10GBase-T ports with UPoE+ support.
- Power Over Ethernet: 1690 W PoE budget for powering devices.
- High Switching Capacity: 2000 Gbps switching capacity, 3000 Gbps with stacking.
- Advanced Routing Protocols: Supports MSTP, RIP, PIM, and more.
- Robust Management: Remote management via NETCONF, RESTCONF, and SNMP.
- Stacking Capability: Supports up to 8 units in a stack.
- Environmental Resilience: Operates in temperatures from 23°F to 113°F.
Specifications
| General | |
|---|---|
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable |
| Ports & PoE | |
| Ports | 48 x 100/1000/2.5G/5G/10GBase-T (UPOE+) |
| Power Over Ethernet (PoE) | UPoE+ (90 W per port) |
| PoE Budget | 1690 W |
| Performance & Capacity | |
| Switching Capacity | 2000 Gbps |
| Switching Capacity with Stacking | 3000 Gbps |
| Forwarding Rate | 1488 Mpps |
| Forwarding Rate with Stacking | 2232 Mpps |
| MAC Address Table Size | 32000 entries |
| IPv4 Routing Table Entries | 39000 |
| VLAN IDs | 4094 |
| Memory | |
| Flash Memory | 16 GB |
| RAM | 16 GB |
| Layer & Routing | |
| Routing Protocols | MSTP, static IP routing, RIP-1, RIP-2, RIPng, PIM-SM, PIM-SSM, GRE, policy-based routing (PBR), STP, VRRP, LISP |
| Stacking | |
| Max Units in a Stack | 8 |
| Interfaces & Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) |
| USB Ports | 1 x USB 2.0 |
| Power | |
| Power Consumption | 1100 W |
| Power Supply Type | Internal power supply |
| Physical | |
| Width | 17.5 in |
| Depth | 22 in |
| Height | 1.7 in |
| Weight | 14.59 lbs |
| Environmental | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Compliance | |
| Compliant Standards | IEEE 802.1BA, IEEE 1588v2, IEEE 802.1ae, IEEE 802.1s, IEEE 802.1w, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz, IEEE 802.3an |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Cisco Catalyst 9300 48-Port mGig UPoE+ Network Essentials Switch – New | C9300X-48HX-E.
The Cisco Catalyst 9300 can stack up to 8 switches.
The switch has a PoE budget of 1690 W, allowing for efficient power distribution.
Yes, it is optimized for high-density Wi-Fi 6 and 802.11ac Wave2 environments.
It supports MSTP, RIP, PIM, static IP routing, and several others for flexible network design.
The switching capacity is 2000 Gbps, which increases to 3000 Gbps when stacked.
The maximum operating temperature is 113 °F.
