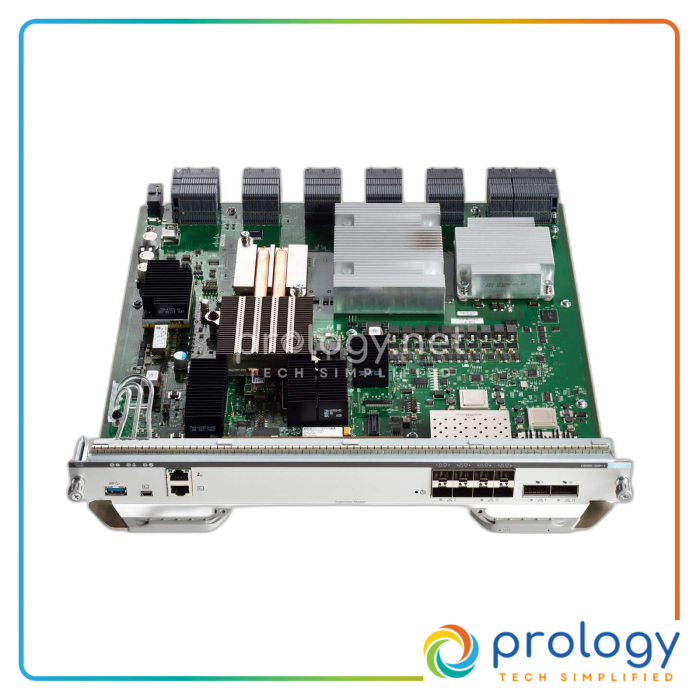

Cisco Catalyst 9400 Series Supervisor 1 Module – Refurbished | C9400-SUP-1=
The Cisco Catalyst 9400 Series Supervisor 1 Module is a refurbished control processor ideal for enterprise networks. It offers up to 1.44 Tbps centralized capacity, 16 GB RAM, and 960 GB SSD.
Out of Stock
General
- Device Type: Control processor
Ports & PoE
- Total VLAN IDs: 4096
Performance & Capacity
- Centralized Wired Capacity: Up to 1.44 Tbps
- Per-slot Switching Capacity: 80 Gbps
- Forwarding Rate (IPv4): 900 Mpps
- Forwarding Rate (IPv6): 450 Mpps
- Total Number of MAC Addresses: Up to 64K
- IPv4 Routing Entries: Up to 112K
- IPv6 Routing Entries: Up to 56K
- Multicast Routes: Up to 16K
Memory
- DRAM: 16 GB
- Flash Memory: 10 GB
- SSD Capacity: 960 GB
Power
- Power Consumption: 700 Watts
Physical
- Width: 14.92 in (37.90 cm)
- Depth: 14.57 in (37.00 cm)
- Height: 1.6 in (4.06 cm)
- Weight: 10 lbs (4.5 kg)
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery US
Dispatch in 1–2 Business Days
Cisco · Catalyst 9400 Series
C9400-SUP-1= 1.44 Tbps Supervisor Module Refurbished
High-performance control processor for enterprise networks.
Overview
The Cisco Catalyst 9400 Series Supervisor 1 Module is designed to enhance enterprise network operations through advanced software-defined access. This module supports a centralized wired capacity of up to 1.44 Tbps and simplifies network management with its programmable architecture. Ideal for large-scale deployments, it enables policy-based automation and efficient resource management.
Key Features
- Centralized Capacity: Supports up to 1.44 Tbps for high-performance networking.
- Memory: Equipped with 16 GB of RAM for robust processing capabilities.
- Storage: Features a 960 GB SSD for fast data access and storage.
- Forwarding Rate: Delivers 900 Mpps for IPv4 and 450 Mpps for IPv6 traffic.
- VLAN Support: Allows for up to 4096 VLAN IDs to segment network traffic.
- Environmental Resilience: Operates in temperatures from -5 to +45ºC with a MTBF of 302,000 hours.
Specifications
| General | |
|---|---|
| Device Type | Control processor |
| Ports & PoE | |
| Total VLAN IDs | 4096 |
| Performance & Capacity | |
| Centralized Wired Capacity | Up to 1.44 Tbps |
| Per-slot Switching Capacity | 80 Gbps |
| Forwarding Rate (IPv4) | 900 Mpps |
| Forwarding Rate (IPv6) | 450 Mpps |
| Total Number of MAC Addresses | Up to 64K |
| IPv4 Routing Entries | Up to 112K |
| IPv6 Routing Entries | Up to 56K |
| Multicast Routes | Up to 16K |
| Memory | |
| DRAM | 16 GB |
| Flash Memory | 10 GB |
| SSD Capacity | 960 GB |
| Power | |
| Power Consumption | 700 Watts |
| Physical | |
| Width | 14.92 in (37.90 cm) |
| Depth | 14.57 in (37.00 cm) |
| Height | 1.6 in (4.06 cm) |
| Weight | 10 lbs (4.5 kg) |
| Environmental | |
| Operating Temperature | -5 to +45ºC |
| Storage Temperature | -40 to +70ºC |
| Relative Humidity | 10 to 95 percent, noncondensing |
| MTBF | 302,000 hours |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Cisco Catalyst 9400 Series Supervisor 1 Module – Refurbished | C9400-SUP-1=.
The C9400-SUP-1= supports a maximum centralized wired capacity of up to 1.44 Tbps.
This module is equipped with 16 GB of RAM.
The C9400-SUP-1= features a 960 GB SSD for storage.
The forwarding rate for IPv4 traffic is 900 Mpps.
It can support up to 4096 VLAN IDs.
The weight of the C9400-SUP-1= is 10 lbs (4.5 kg).
