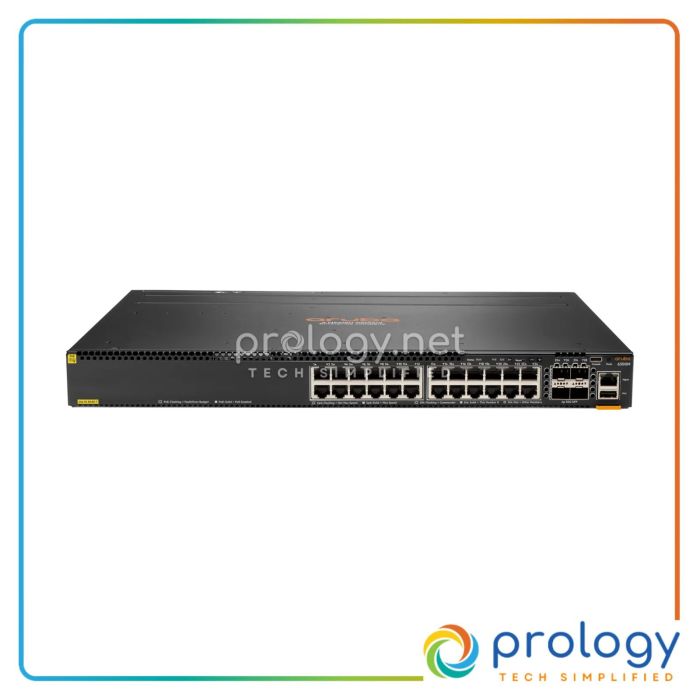

HPE CX 6300 24-Port 1GbE Class 4 PoE Managed Switch – New | JL662A
In Stock — Ready to Ship
1 units available
SKU
JL662A-NEW
MPN
JL662A
$8,541
The HPE CX 6300 is a new 24-port managed switch ideal for small to medium-sized businesses. It features 24 PoE+ ports, 4 SFP56 uplinks, and a switching capacity of 448 Gbps.
Available via Supplier
Device Type
Switch - 24 ports - L3 - Managed - stackable
Enclosure Type
Front and side to back rack-mountable 1U
Ports
24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W
Uplink Ports
4 x 1Gbit/10Gbit/25Gbit/50Gbit SFP56
Switching Capacity
448 Gbps
Throughput
334 Mpps
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery US
Dispatch in 1–2 Business Days
HPE · CX 6300 Series
JL662A 24-Port 1GbE Class 4 PoE Switch New
Designed for modern networking demands in enterprise environments.
Overview
The HPE CX 6300 is a versatile managed switch that combines advanced Layer 2 and Layer 3 features with a cloud-centric design. It is built on the powerful Aruba Gen7 ASIC architecture, providing high performance and programmability for future applications. Ideal for small to medium-sized businesses, it supports high-density PoE and offers robust security features.
Key Features
- 24 PoE+ Ports: Provides power and connectivity for various network devices.
- 4 SFP56 Uplinks: Enables high-speed fiber connections for uplink or inter-switch connections.
- Switching Capacity: Offers a switching capacity of 448 Gbps for efficient data handling.
- Throughput: Delivers a throughput of 334 Mpps for high-performance networking.
- Advanced Security: Features Access Control Lists (ACLs) and Port Security for network integrity.
- Compact Design: Rack-mountable 1U form factor suitable for space-constrained environments.
- Environmental Resilience: Operates in temperatures from 0°C to 45°C with a humidity range of 15-95%.
- User-Friendly Management: Easily configurable via a web-based interface or CLI.
Specifications
| General | |
|---|---|
| Device Type | Switch - 24 ports - L3 - Managed - stackable |
| Enclosure Type | Front and side to back rack-mountable 1U |
| Ports & PoE | |
| Ports | 24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W |
| Uplink Ports | 4 x 1Gbit/10Gbit/25Gbit/50Gbit SFP56 |
| Performance & Capacity | |
| Switching Capacity | 448 Gbps |
| Throughput | 334 Mpps |
| Memory | |
| Flash Memory | 32 GB |
| Layer & Routing | |
| Routing Protocols | EGP, BGP-4, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, MSDP, static IPv6 routing, ECMP, MLD, BFD |
| Stacking | |
| Stacking Bandwidth | 200 Gbps |
| Interfaces & Connectivity | |
| Management Interfaces | 1 x USB-C console, 1 x management, 1 x USB Type A |
| Power | |
| PoE Budget | 720 W |
| Physical | |
| Width | 44.2 cm |
| Depth | 38.5 cm |
| Height | 4.4 cm |
| Weight | 5.55 kg |
| Environmental | |
| Operating Temperature | 0 °C to 45 °C |
| Storage Temperature | -40 °C to 70 °C |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Humidity Range Storage | 15 - 95% (non-condensing) |
| Compliance | |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3bt |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the HPE CX 6300 24-Port 1GbE Class 4 PoE Managed Switch – New | JL662A.
The JL662A has a PoE budget of 720 W, allowing it to power multiple devices efficiently.
The JL662A features 4 SFP56 ports for high-speed uplink connections.
The switching capacity of the JL662A is 448 Gbps, ensuring high performance for data handling.
Yes, the JL662A supports stacking with a bandwidth of 200 Gbps.
The maximum operating temperature for the JL662A is 45 °C.
The JL662A supports management via USB-C, management port, and USB Type A.
