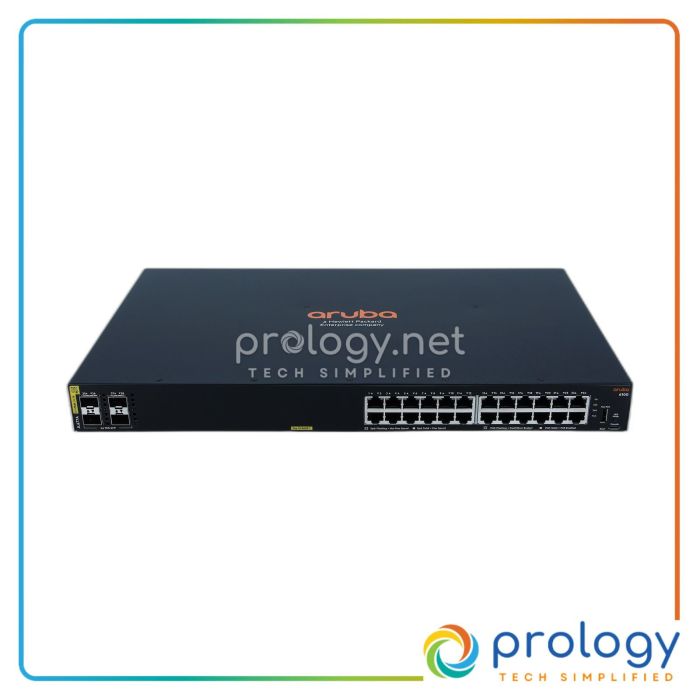

Aruba CX 6100 24-Port Gigabit PoE+ 370W Switch – New | JL677A
In Stock — Ready to Ship
44 units available
SKU
JL677A-NEW
MPN
JL677A
$2,576
The Aruba CX 6100 is a new switch for enterprise branch offices and SMB networks. It features 24 Gigabit Ethernet ports, 370W PoE support, and 4 SFP+ uplinks.
Available via Supplier
General
- Device Type: Managed Switch
- Model: JL677A
Ports & PoE
- Ports: 24 x 10/100/1000 (PoE+) + 4 x 1/10 Gigabit SFP+
- PoE Budget: 370 W
Performance & Capacity
- Switching Capacity: 128 Gbps
- Throughput: 95.2 Mpps
- Latency (1 Gbps): 1.5 µs
- Latency (10 Gbps): 1.8 µs
Power
- Power Consumption: 32.7 W
- AC Input Voltage: 100 - 240 V
Physical
- Width: 442 mm
- Depth: 268 mm
- Height: 44 mm
- Weight: 4.2 kg
Environmental
- Operating Temperature: 0 - 45 °C
- Storage Temperature: -40 - 70 °C
- Operating Humidity: 15 - 95 % (non-condensing)
- Storage Humidity: 15 - 90 % (non-condensing)
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery US
Dispatch in 1–2 Business Days
Aruba · CX 6100 Series
JL677A 24-Port Gigabit PoE+ Switch New
Designed for modern networks with robust performance.
Overview
The Aruba CX 6100 Switch Series is a modern family of entry-level access switches ideal for enterprise branch offices and SMB networks. Built to meet the demands of contemporary networking, these switches offer high-performance features and full Layer 2 connectivity, supporting ACLs, robust QoS, static routing, and more. The JL677A model includes 24 Gigabit Ethernet ports and 4 SFP+ uplinks, with a PoE budget of up to 370W.
Key Features
- Layer 2 Connectivity: Supports ACLs and robust QoS for efficient traffic management.
- PoE Support: Delivers up to 370W of Power over Ethernet for connected devices.
- High Throughput: Offers a switching capacity of 128 Gbps and throughput of 95.2 Mpps.
- Low Latency: Achieves latency of 1.5 µs at 1 Gbps and 1.8 µs at 10 Gbps.
- Flexible Management: Automated configuration and verification with Aruba NetEdit.
- Environmental Resilience: Operates in temperatures from 0°C to 45°C and humidity levels of 15% to 95%.
- Compact Design: Rack-mountable in a 1U form factor with side-to-side airflow.
Specifications
| General | |
|---|---|
| Device Type | Managed Switch |
| Model | JL677A |
| Ports & PoE | |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x 1/10 Gigabit SFP+ |
| PoE Budget | 370 W |
| Performance & Capacity | |
| Switching Capacity | 128 Gbps |
| Throughput | 95.2 Mpps |
| Latency (1 Gbps) | 1.5 µs |
| Latency (10 Gbps) | 1.8 µs |
| Power | |
| Power Consumption | 32.7 W |
| AC Input Voltage | 100 - 240 V |
| Physical | |
| Width | 442 mm |
| Depth | 268 mm |
| Height | 44 mm |
| Weight | 4.2 kg |
| Environmental | |
| Operating Temperature | 0 - 45 °C |
| Storage Temperature | -40 - 70 °C |
| Operating Humidity | 15 - 95 % (non-condensing) |
| Storage Humidity | 15 - 90 % (non-condensing) |
| Compliance | |
| Standards | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Aruba CX 6100 24-Port Gigabit PoE+ 370W Switch – New | JL677A.
The JL677A supports a maximum PoE budget of 370W.
The JL677A features 24 Gigabit Ethernet ports.
The switching capacity of the JL677A is 128 Gbps.
Yes, the JL677A is rack-mountable in a 1U form factor.
The operating temperature range for the JL677A is 0 to 45 °C.
Yes, the JL677A supports VLAN configurations.
