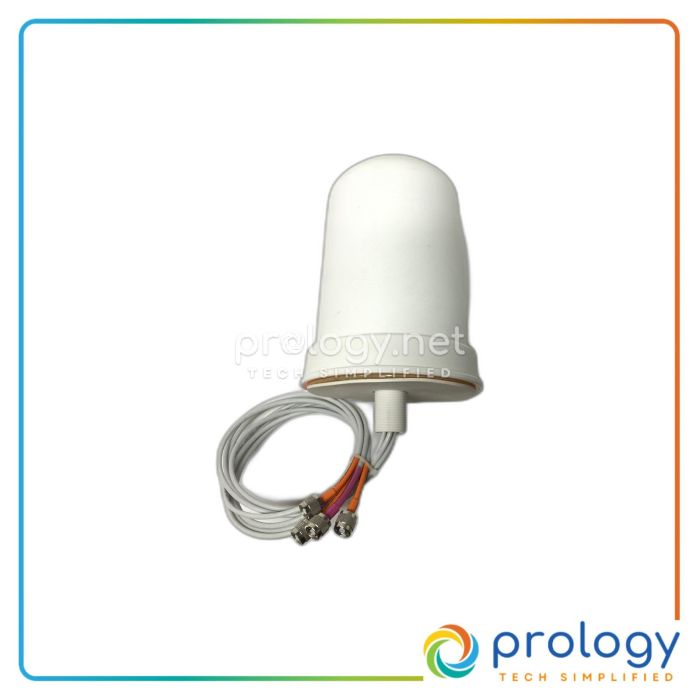

Cisco AIR-ANT2544V4M-RS 2.4GHz/5GHz 4 dBi Multi Mount Omni Ant RP-TNC Self
In Stock
2 units available
SKU
AIR-ANT2544V4M-RS-REFURBISHED
MPN
AIR-ANT2544V4M-RS
A$611.00
A$555.45
Refurbished Cisco Aironet AIR-ANT2544V4M-RS is a four-element dual-band (2.4/5 GHz) MIMO wall-mounted omnidirectional antenna with self-identifying (electronic ID) capability and four RP-TNC connectors for Cisco Aironet and Catalyst access points.
*New Sealed* Cisco AIR-ANT2544V4M-RS Aironet Dual-Band Omnidirectional Antenna
A$1,555.00
A$1,413.64
In Stock
Brand
Cisco
Model
AIR-ANT2544V4M-RS
Device Type
Dual-Band MIMO Omnidirectional Antenna
Frequency
2.4 GHz / 5 GHz
Gain
4 dBi
Connectors
4x RP-TNC
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery AU
Dispatch in 1–2 Business Days
AIR-ANT2544V4M-RS
Cisco AIR-ANT2544V4M-RS 2.4GHz/5GHz 4 dBi Multi Mount Omni Ant RP-TNC Self REFURBISHED
Refurbished Cisco Aironet AIR-ANT2544V4M-RS is a four-element dual-band (2.4/5 GHz) MIMO wall-mounted omnidirectional antenna with self-identifying (electronic ID) capability and four RP-TNC connectors for Cisco Aironet and Catalyst access points.
The AIR-ANT2544V4M-RS is the self-identifying ("-RS") variant of the AIR-ANT2544V4M four-element dual-band MIMO omnidirectional antenna. It supports 4x4 MIMO across the 2.4 GHz (2400-2484 MHz) and 5 GHz (5150-5850 MHz) bands with a peak gain of 4 dBi, and is designed for wall mounting to provide broad coverage in warehouses, campuses, and enterprise spaces. The self-identifying feature lets Cisco Catalyst 9800 wireless controllers (IOS-XE 17.4.1 and later) automatically detect the attached antenna model.
Key Features
- Four-element dual-band MIMO antenna (2.4 GHz and 5 GHz)
- Peak gain of 4 dBi in both frequency bands
- Self-identifying design detected automatically by Cisco Catalyst 9800 controllers (IOS-XE 17.4.1+)
- Four RP-TNC connectors for 4x4 MIMO access points
- Wall-mounted omnidirectional coverage
- Operating temperature range of -30 to 70 degrees C (-22 to 158 degrees F)
- 50-ohm nominal impedance
- Compatible with Cisco Aironet 1600/2600/3600 and Catalyst 9115/9120/9130 access points
Documents
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
| General | |
|---|---|
| Brand | Cisco |
| Part Number | AIR-ANT2544V4M-RS |
| Antenna Type | Four-element dual-band MIMO omnidirectional |
| Self-Identifying | Yes (detected by Catalyst 9800, IOS-XE 17.4.1+) |
| Performance | |
| Frequency Range | 2400-2484 MHz and 5150-5850 MHz |
| Peak Gain | 4 dBi (both bands) |
| Nominal Impedance | 50 ohms |
| MIMO | 4x4 (four elements) |
| Physical | |
| Connectors | Four RP-TNC |
| Dimensions | Approx. 8.6 x 6.3 in (21.8 x 16 cm) |
| Mounting | Wall mount |
| Operating Temperature | -30 to 70 degrees C (-22 to 158 degrees F) |
| Compatibility | |
| Access Points | Cisco Aironet 1600, 2600, 3600; Catalyst 9115AX, 9120AX, 9130AX |
Write Your Own Review
Common questions about the Cisco AIR-ANT2544V4M-RS 2.4GHz/5GHz 4 dBi Multi Mount Omni Ant RP-TNC Self.
The -RS denotes the self-identifying variant, which Cisco Catalyst 9800 wireless controllers running IOS-XE 17.4.1 or later can automatically detect and identify.
It has four RP-TNC connectors to support 4x4 MIMO access points.
It provides a peak gain of 4 dBi in both the 2.4 GHz and 5 GHz bands.
No documents available for this product yet.
