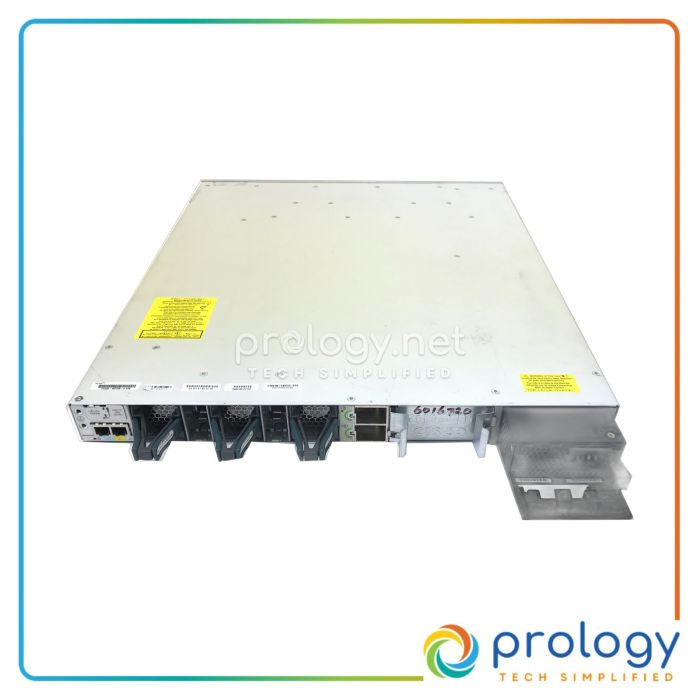

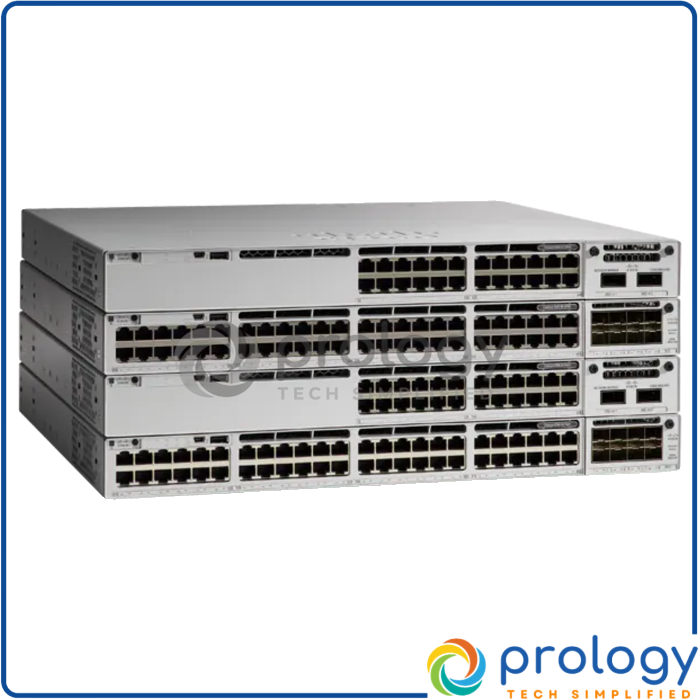

Cisco Catalyst 9300 48-Port 2.5G UPOE Network Advantage Switch – Refurbished | C9300-48UXM-A
In Stock — Ready to Ship
1 units available
SKU
C9300-48UXM-A-REFURBISHED
MPN
C9300-48UXM-A
A$5,490
The Cisco Catalyst 9300 is a refurbished 48-port managed switch ideal for enterprise networks. It features 36 x 2.5GBase-T and 12 x 10G ports, with a PoE budget of 490W.
In Stock — Ready To Ship
Device Type
Switch - 48 ports - L3 - managed - stackable
Enclosure Type
Rack-mountable 1U
Total Ports
48
2.5G Ports
36 x 2.5GBase-T (UPOE)
10G Ports
12 x 100/1000/2.5G/5G/10G (UPOE)
PoE Type
UPOE
Request a quote or add to cart — pricing available on enquiry for refurbished stock.
For international customers, please contact us for personalised support and assistance.
180-Days Warranty
Secure Checkout
Free Delivery AU
Dispatch in 1–2 Business Days
Cisco · Catalyst 9300 Series
C9300-48UXM-A 48-Port 2.5G Switch Refurbished
Designed for high-performance enterprise networking.
Overview
The Cisco Catalyst 9300 is a stackable managed switch built for security and cloud applications. It supports Universal Power Over Ethernet (UPOE) and is optimized for high-density environments. This switch is ideal for enterprises looking to enhance their network capabilities with advanced features and robust performance.
Key Features
- Port Configuration: 36 x 2.5GBase-T and 12 x 100/1000/2.5G/5G/10G ports.
- PoE Budget: Supports a total PoE budget of 490W for powering devices.
- Switching Capacity: Provides a switching capacity of 580 Gbps.
- Stacking Bandwidth: Offers stacking bandwidth of 480 Gbps with StackWise technology.
- Forwarding Rate: Achieves a forwarding rate of 431.54 Mpps.
- Memory: Equipped with 8 GB of RAM and 16 GB of flash memory.
- Management Protocols: Supports SNMP, CLI, NETCONF, and RESTCONF for remote management.
- Environmental Standards: Compliant with various international standards for safety and electromagnetic compatibility.
Specifications
| General | |
|---|---|
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Ports & PoE | |
| Total Ports | 48 |
| 2.5G Ports | 36 x 2.5GBase-T (UPOE) |
| 10G Ports | 12 x 100/1000/2.5G/5G/10G (UPOE) |
| PoE Type | UPOE |
| PoE Budget | 490 W |
| Performance & Capacity | |
| Switching Capacity | 580 Gbps |
| Stacking Bandwidth | 480 Gbps |
| Forwarding Rate | 431.54 Mpps |
| MAC Address Table Size | 32,000 entries |
| Jumbo Frame Support | 9198 bytes |
| Memory | |
| RAM | 8 GB |
| Flash Memory | 16 GB |
| Layer & Routing | |
| Routing Protocols | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng |
| Stacking | |
| Stacking Technology | StackWise-480 |
| Interfaces & Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) |
| Power | |
| Power Supply | Internal power supply - hot-plug |
| Power Redundancy | Optional |
| Power Provided | 1100 Watt |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Physical | |
| Width | 17.5 in |
| Depth | 18.5 in |
| Height | 1.7 in |
| Weight | 20.59 lbs |
| Environmental | |
| MTBF | 202,160 hours |
| Operating Temperature | 23 °F to 113 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Compliance | |
| Compliant Standards | CISPR 22 Class A, EN 61000-3-2, EN 61000-3-3, RoHS, and more. |
Product information is automatically compiled from trusted manufacturers and data providers. Please. report any errors.
Write Your Own Review
Common questions about the Cisco Catalyst 9300 48-Port 2.5G UPOE Network Advantage Switch – Refurbished | C9300-48UXM-A.
The maximum PoE budget for the C9300-48UXM-A is 490W.
The C9300-48UXM-A has a total of 48 ports, including 36 x 2.5GBase-T and 12 x 10G ports.
The switching capacity of the C9300-48UXM-A is 580 Gbps.
Yes, the C9300-48UXM-A supports stacking with StackWise technology, providing up to 480 Gbps of stacking bandwidth.
The C9300-48UXM-A supports multiple routing protocols including OSPF, BGP, EIGRP, and more.
The operating temperature range for the C9300-48UXM-A is 23 °F to 113 °F.
